Filter elements

The Fuel Gas Filters are based upon Eltacon coalescer and particle filter elements.  Different sizes and techniques are developed to enable correct filtration of Fuel Gas.

Filtration of liquid particles and solid particles go down to 99,9% ≥ 0,3 µm absolute.

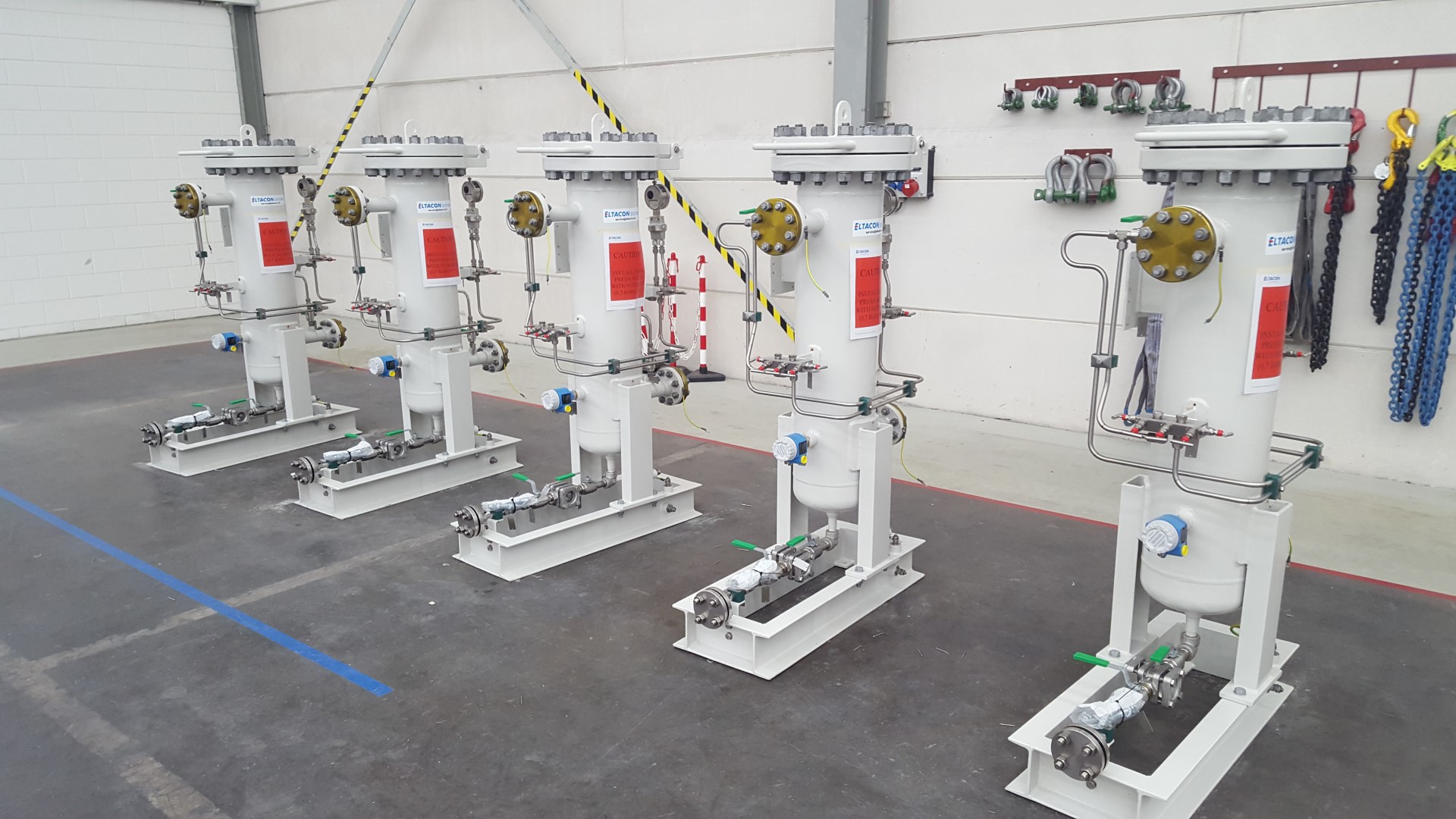

Filter housings

All standard configurations are available in carbon steel, low temperature steel, stainless steel and (super) duplex stainless steel for filter housing, inlet and outlet piping.
Standard connection sizes and pressure ratings are inlet/outlet piping 1″ to 8″ and pressure rating 150 to 900#.

Design and fabrication certification of the vessels:

  • PED/CE 2014/68/EU
  • ASME VIII Div.1
  • ASME code stamp
  • AD2000
  • EN 13445
  • NACE MR0175 / ISO15156
  • CU TR 032/2013



Filter Units

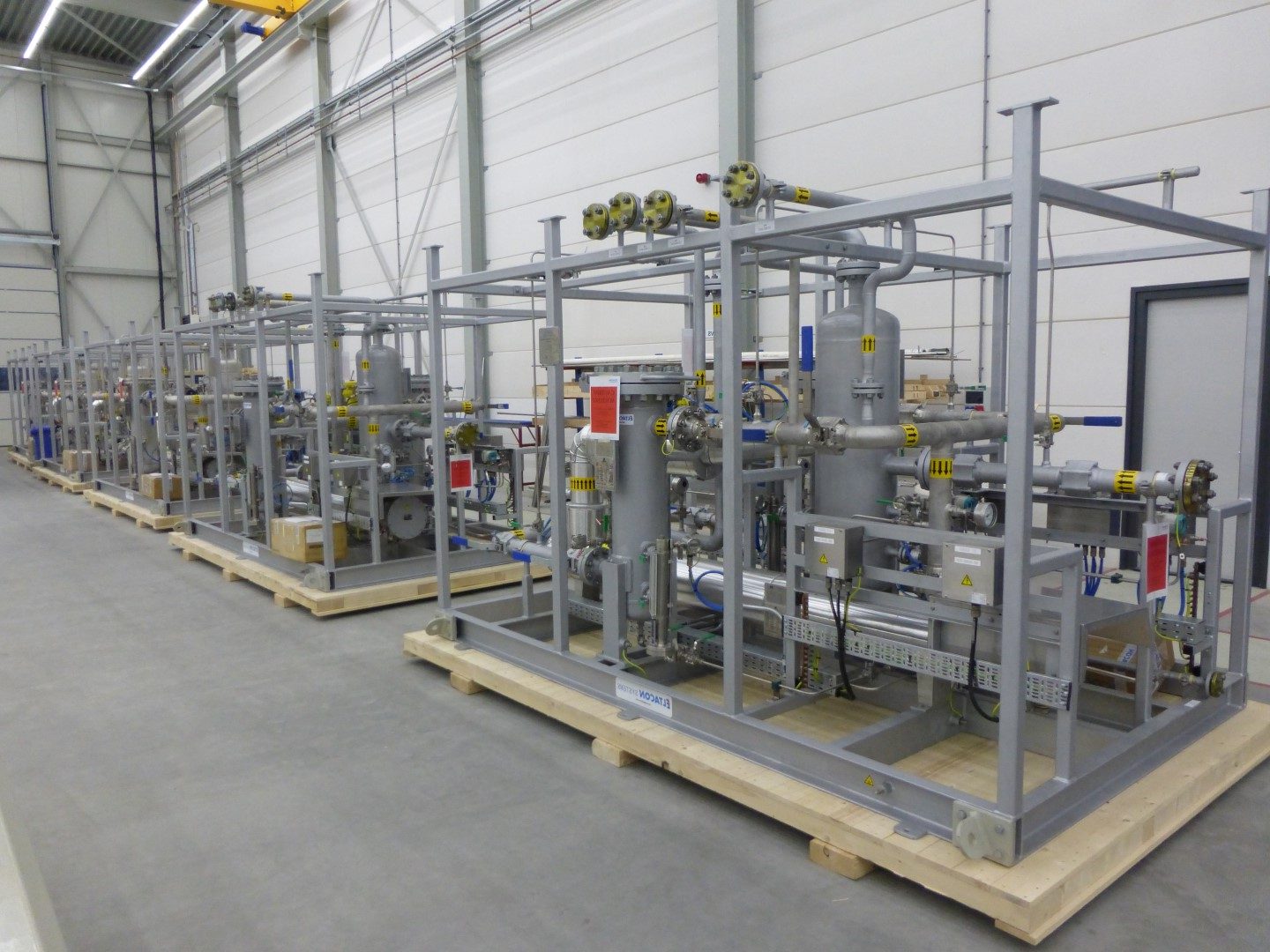

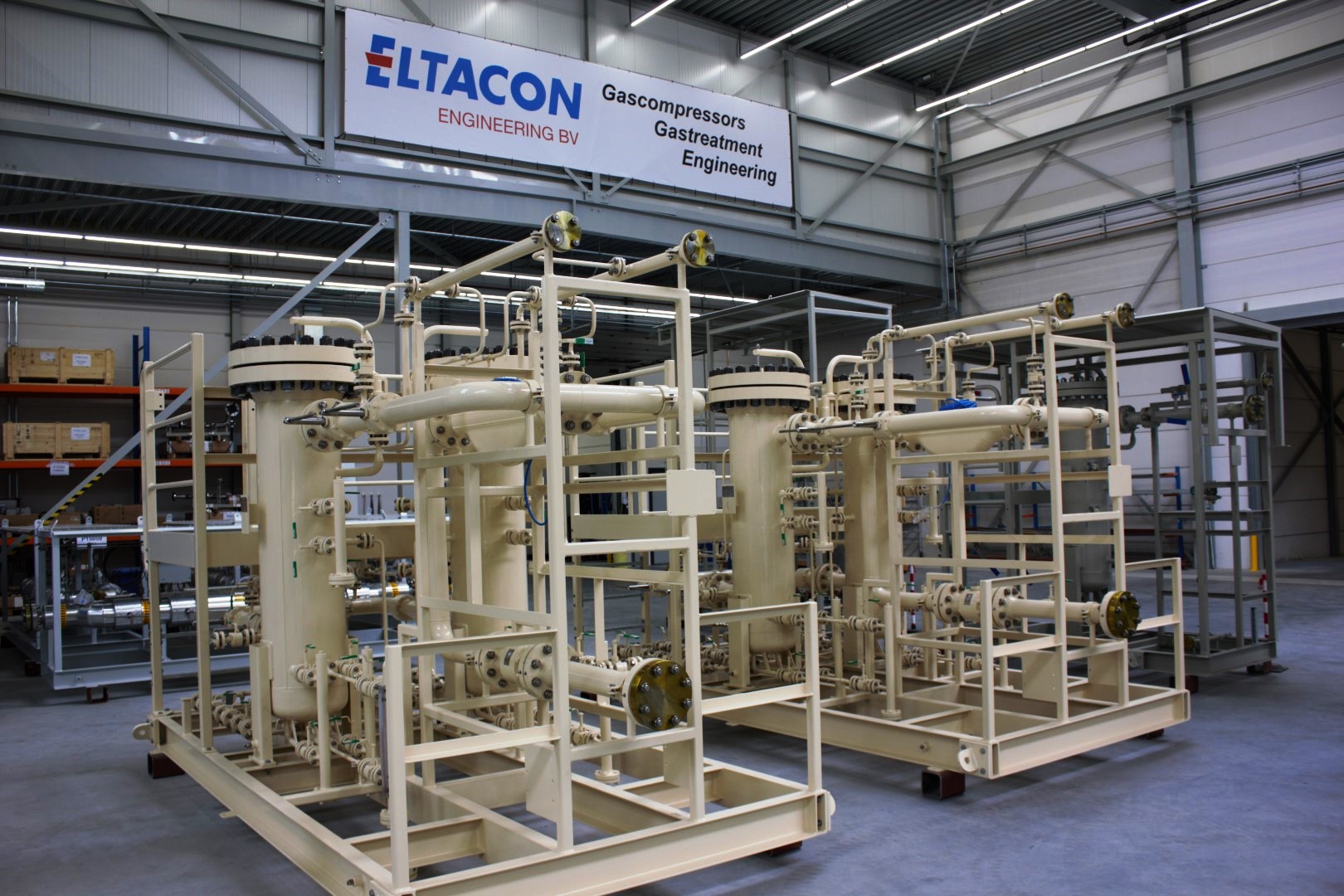

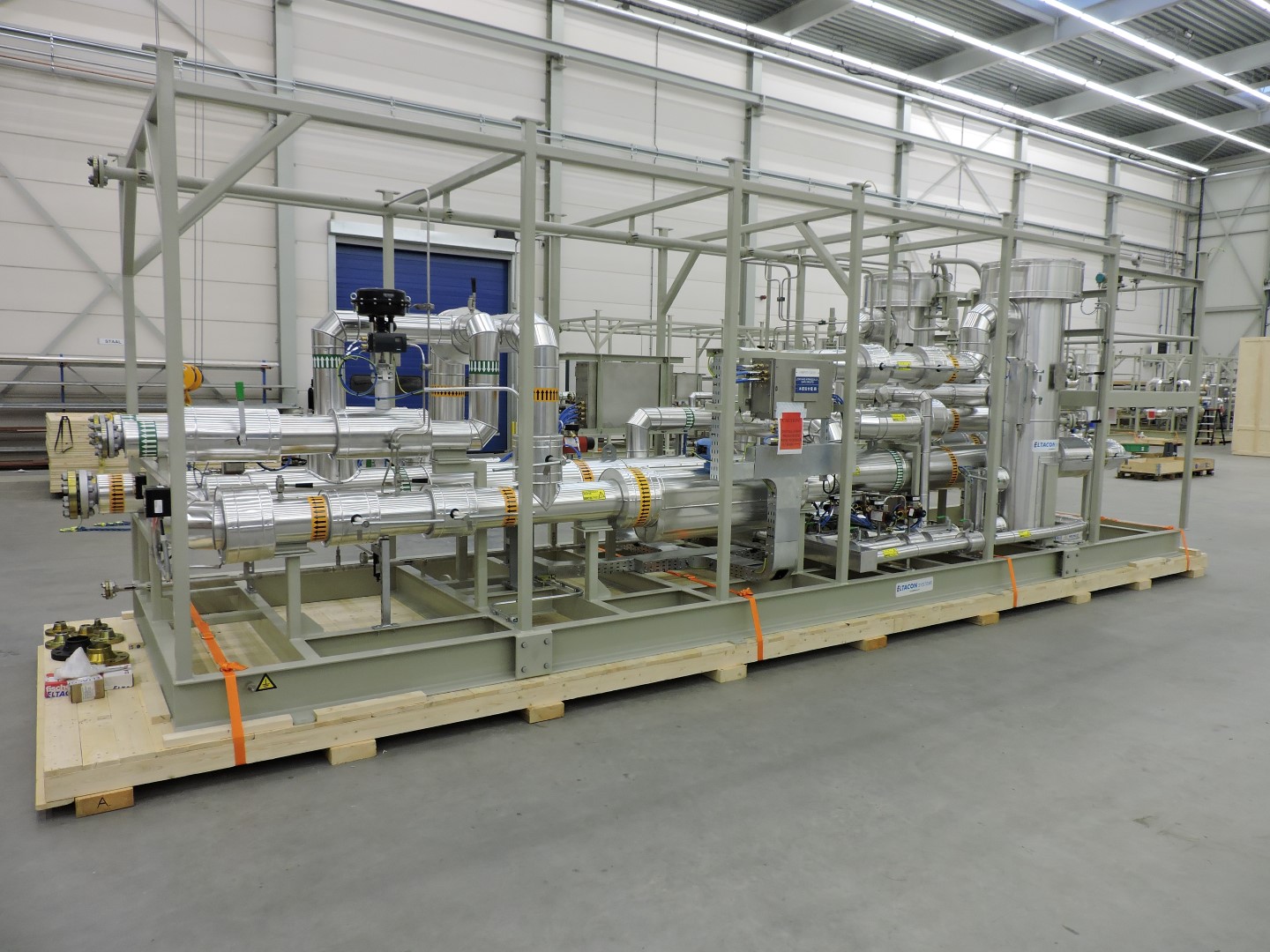

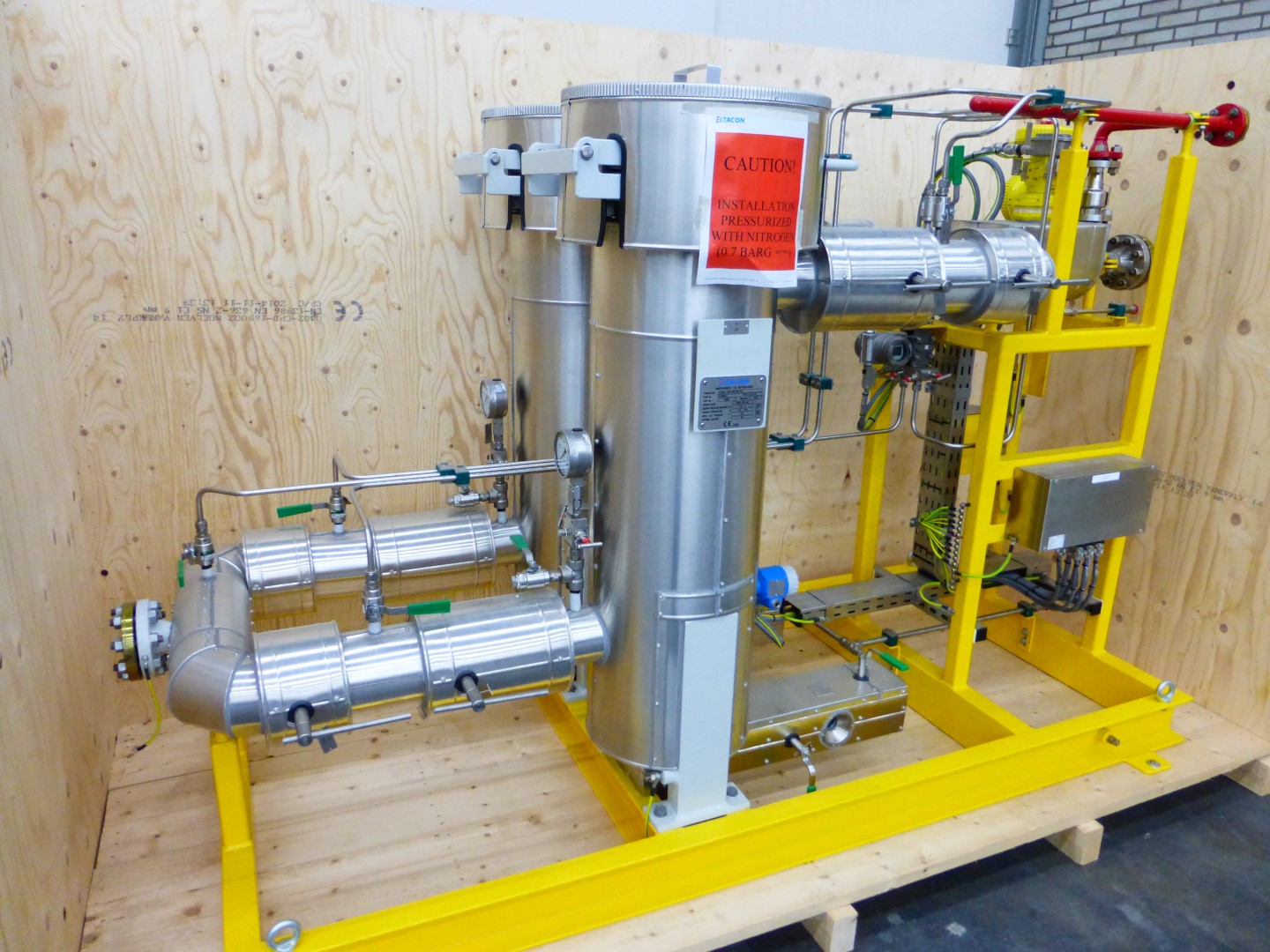

Besides this standard range of filter units Eltacon is also capable of designing and manufacturing specialized fuel gas treatment packages in various executions to specific customer requirements and specifications.

Typical fuel gas treatment packages can include (but are not limited to):

  • Knock Out drums
  • Coalescing and/or particle filters
  • Gas heaters (electric or shell & tube heat exchangers) including auxiliaries
  • Pressure reducing sections with active, monitor and slam shut valves
  • Flow metering runs (for control or custody)
  • Unit Control Panels

Furthermore Eltacon is experienced in designing and manufacturing units suitable for a wide range of environments, ranging from artic to desert or off-shore conditions.
